AgriTech / Controlled-Environment Agriculture
AI Ponics Autonomous Hydroponics Farm
6,500 Plants Under Continuous Autonomous Control
AgriTech
Industry
14 months
Duration
1 → 9
TRL
8
Disciplines
Background
A commercial-scale indoor farming venture required a turnkey hydroponic facility capable of sustaining 6,500 plants with minimal human intervention. The client needed a fully autonomous grow environment with predictable yield, continuous quality, and remote monitoring.
The problem
What made it hard.
Coordinating hundreds of sensors, dosing pumps, HVAC units, and lighting zones while preserving sub-second control loops. Variability in crop types, water chemistry, and environmental drift made rule-based logic insufficient. The system had to degrade gracefully during network loss and avoid single points of failure that could destroy a full harvest.
Approach
What we built.
Our team designed a layered architecture: PLC-grade edge controllers for deterministic actuation, an AI advisory layer for nutrient and climate prediction, and a cloud SaaS for fleet-wide analytics. Twelve grow zones were modeled as digital twins, calibrated against real-world telemetry. Computer vision cameras monitored canopy density and leaf color daily, feeding a growth-stage classifier. Nutrient dosing was tuned through closed-loop EC/pH control with safety interlocks.
Workstreams
What the program actually covered.
This was delivered as 8 coordinated workstreams over 14 months.
WS 01
Modular Indoor Hydroponics System
We designed a stackable chassis with standardized power and data interfaces between modules. Airflow and thermal behavior were validated through simulation before prototyping.
WS 02
Semi-Commercial Hydroponics Rack System
We engineered a four-tier rack with optimized channel slope and return manifolds validated through flow testing. A central control cabinet housed the PLC, dosing pumps, and safety relays.
WS 03
Smart Nutrient Dosing Automation System
We designed a multi-channel dosing rack driven by closed-loop PID control on EC and pH. Pumps are calibrated on-site and re-verified automatically.
WS 04
Climate-Controlled Grow Chamber System
We designed a multi-loop controller that treats VPD as a first-class setpoint and orchestrates the underlying actuators accordingly. CO₂ is injected on a schedule tied to photoperiod and canopy activity.
WS 05
Hydroponics Environmental Control System
We built a wireless mesh of low-power sensor nodes feeding an edge controller that maintains a live climate heatmap. Actuators were grouped into zones, each with its own setpoint and priority.
WS 06
Precision Watering & Irrigation Automation System
We deployed flow-metered solenoid manifolds at each zone, combined with substrate moisture sensors for feedback. The controller calculates delivered volume per event and flags deviations as leaks or blockages.
WS 07
Vertical Farming Optimization System
We instrumented lighting and HVAC subsystems for detailed energy accounting, then used DLI targets rather than fixed photoperiods to drive dimmable fixtures. Airflow was re-balanced after CFD analysis of existing racks.
WS 08
Seed-to-Harvest Lifecycle Automation System
We built a workflow engine keyed on barcoded trays, scanned at each station. State transitions automatically update climate recipes and schedules downstream.
Outcome
What it measured.
6,500
plants under continuous autonomous control
22%
yield improvement vs. baseline
38%
reduction in water consumption
The facility achieved continuous 24/7 operation with sub-1% downtime across the first harvest cycle. Yields improved 22% over the client's benchmark greenhouse, while water consumption dropped 38%. The dashboard gave operators a single pane of glass across all 6,500 plants, and alerts reduced response time to anomalies by over 80%.
Our role
System architecture; edge firmware; AI/ML models; SaaS platform; commissioning.
Technologies
Edge AILoRaWANMQTTESP32PLCComputer VisionTime-Series DBReactSTM32NB-IoTCFD airflow analysisSLA prototyping
Gallery
Inside the build.

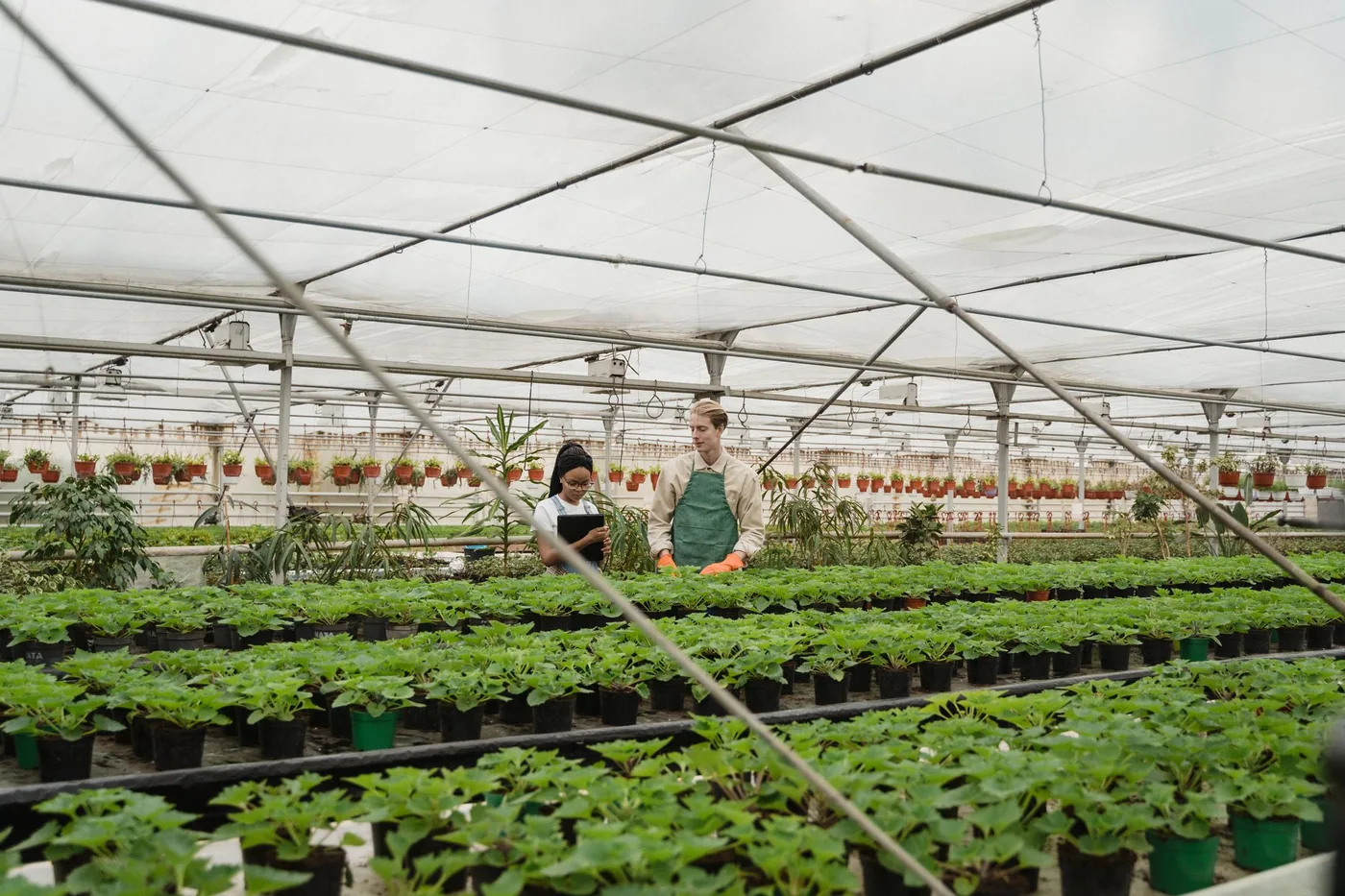

Illustrative of the crop-side task the vision layer automates: growth-stage and health assessment across 6,500 plants that would otherwise be a manual walk of every zone.

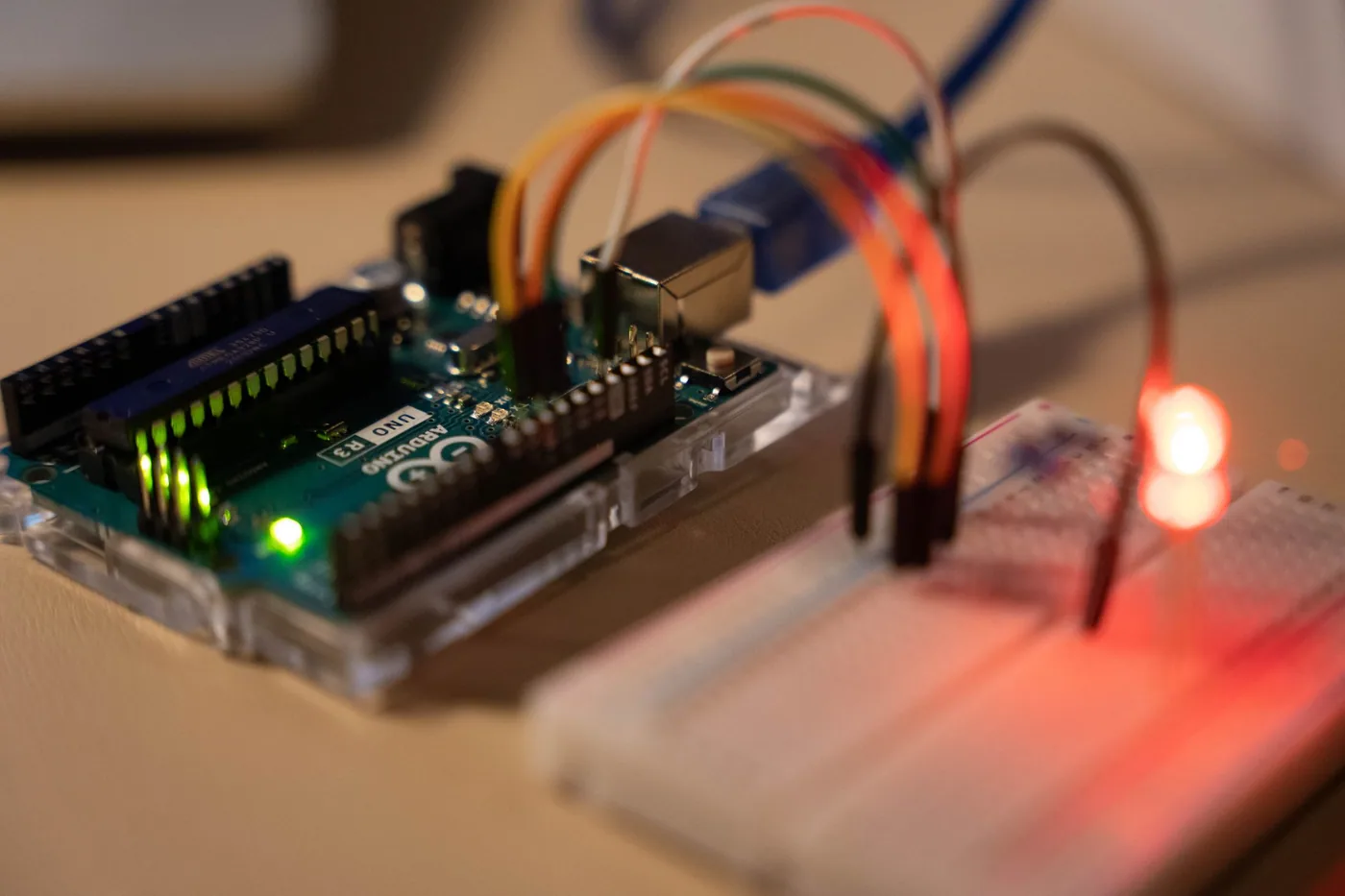

Representative of the ESP32 node hardware at each zone: sensors are read locally and reported upstream over LoRaWAN and MQTT, keeping the control loop off the network path.

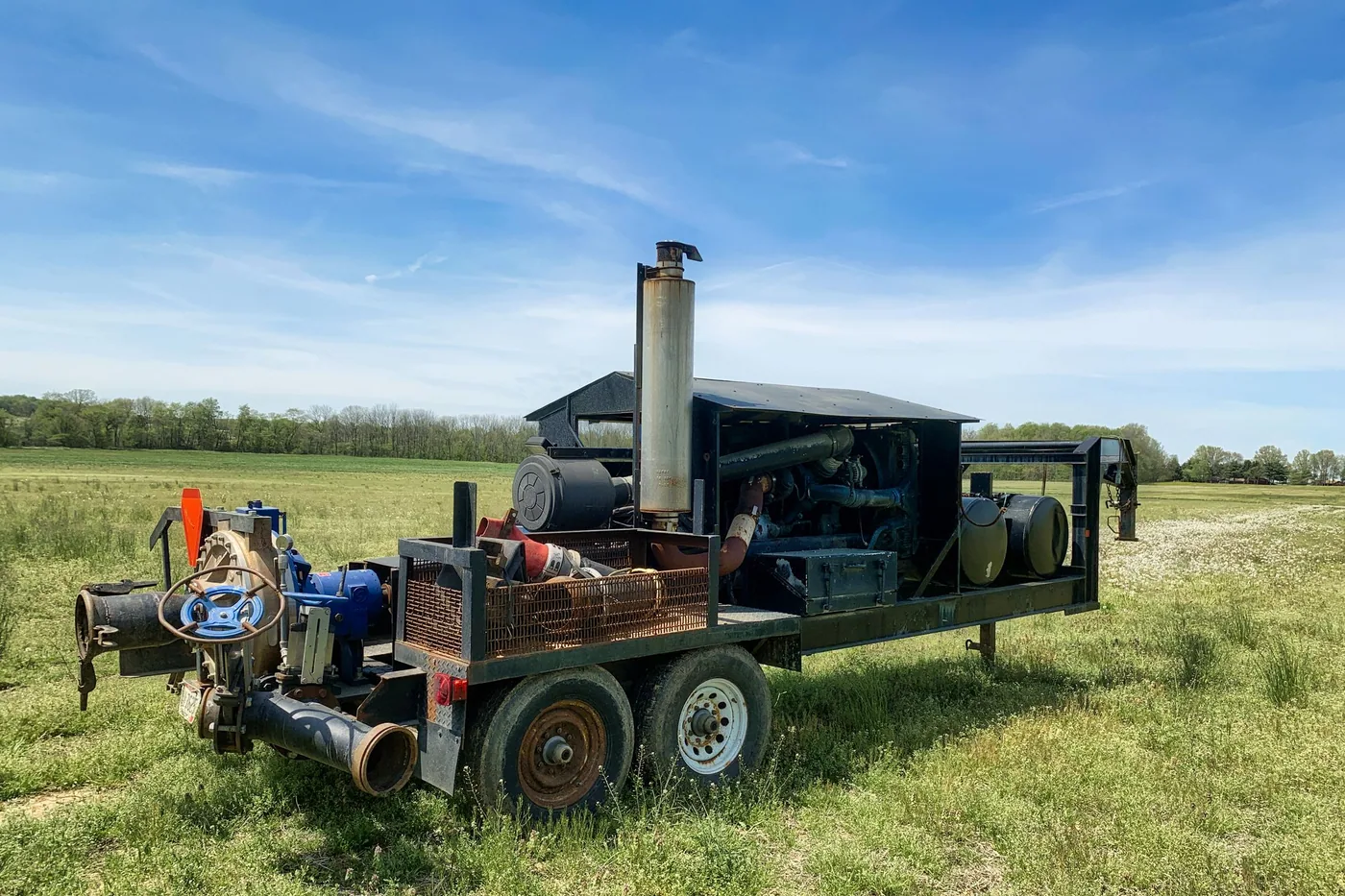

Illustrative of the dosing and recirculation hardware the controller drives - nutrient pumps, mixing valves and return lines are where water-chemistry variability is actually corrected.
